Beretta Web - Beretta Pistol Model 92

Unofficial Beretta Site

Model  92: the First 9mm Beretta double action pistol

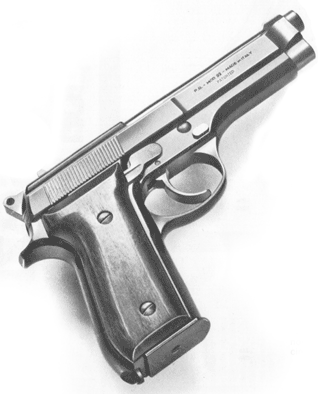

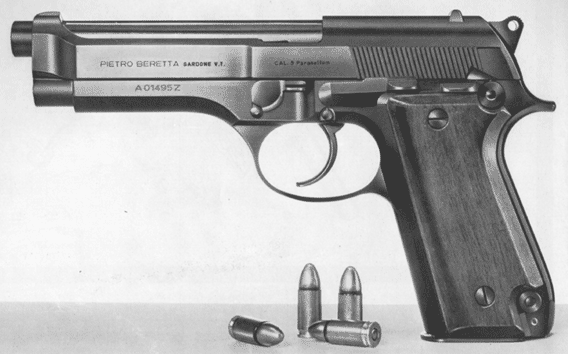

Beretta Pistol Model 92Beretta Pistol Model 92 trigger 15+1

Beretta Pistol Model 92 magazine

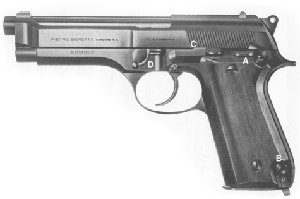

A) Sicura manuale (non inserita) / Manual safety (not set)
B) Bottone sgancio caricatore / Magazine release button
C) Leva arresto otturatore / Slide catch
D) Chiavistello di smontaggio / Disassembling latch
E) Pulsante chiavistello di smontaggio / Disassembling latch release button



It is well known that pistols have the following advantages over revolvers:

- higher lightness and shorter trigger pull higher precision
- higher muzzle velocity
- less maintenance needed
- higher rate of fire in rapid fire higher volume of fire.

The Beretta pistol model 92 has also the following characteristics: DOUBLE ACTION: which offers the advantages of the revolver. Furthermore, this system allows the possibility of a second quick strike on the same ammunition in the rare instance of misfire which, in view of the high level of quality reached in ammunition today, can practically happen only because of the capsule. The repetition of percussion is sufficient to fire the round.

STAGGERED MAGAZINE: (holds 15 rounds). With the same length as a traditional magazine, it almost doubles the capacity of f ire.

CHAMBER LOADED INDICATOR: when there is a round in the barrel the extractor protrudes laterally showing red. It is therefore possible to check visually (and, at night, to feel) whether there is a round in the barrel without having to retract the slide.

DISASSEMBLING DEVICE: extremely quick and simple. It is designed in such a way as to avoid casual or involuntary disassembly.

BALLISTICS: although depending to a certain extent on the type and the quality of the ammunition and local atmospheric conditions, they are the optima obtainable from a firearm of this size. In normal conditions of use, the average velocity and corresponding kinetic energy of the ammunition fired from this firearm are as follows: V 0.5 = 1280 ft./sec. E 0.5 = 455 ft/bs





For Old and New Pistol Magazine and Military surplus visit Numrich Gun Parts

Beretta Pistol Model 92 magazine note

Caratteristiche tecniche della pistola mod. 92
Technical featurea of mod. 92 pistol

Funzionamento semiautomatico, a corto rinculo
System of operation short recoil, semi-automatic
Chiusura geometrica a blocco oscillante
Locking system falling locking block driven
  down to disengage the slide and stop the barrel
Cane esterno a doppia az ione
Hammer exposed, double action
Calibro 9 mm. Parabellum
Caliber 9 mm. Parabellum
Lunghezza mm. 217
Length 8.54 in.
Altezza mm. 137
Height 5.39 in.
Spessore mm. 37
Width 1.45 in.
Peso (con caricatore vuoto) gr. 950 circa
Weight (with empty magazine) about 33.50 ozs.
Lunghezza canna mm. 125
Barre] length 4.92 i n.
Rigatura canna 6 righe destrorse (passo mm. 250)
Rifling R.H., 6 grooves (pitch about 10 in.)
Mirino a lama, integrale con l'otturatore
Rifling biade, integrai with slide
Tacca di mira forzata nell'otturatore
Rear sight notched bar, dovetailed to slide
Lunghezza linea di mira mm. 155
Sighting line 6.10 i n.
Sicure a) sicura manuale, blocca  il congegno di
  scatto ed il carrello otturatore chiuso
  b) monta di sicurezza del cane
  c) percussore a lancio inerziale
Safeties a) manual safety locking trigger
  mechanism and slide in locked position
  b) half-cock position
  c) inertial operated firing pin
Caricatore bifilare, contenente 15 cartucce
Magazine staggered, 15 shot
Carrello-otturatore rimane aperto dopo l'ultimo colpo
Slide hold open upon firing of last cartridge
Finiture parti in acciaio: brunite; parti
  in lega: ossidate anodicamente
Finish steel components: blued; light alloy
  components: anodized
Guancette in plastica, oppure, a richiesta,
  in legno di noce
Grips piastic grips or, on request,
  wainut grips
