P. Beretta model 625 Side by Side 12 GA

home 92X Performance

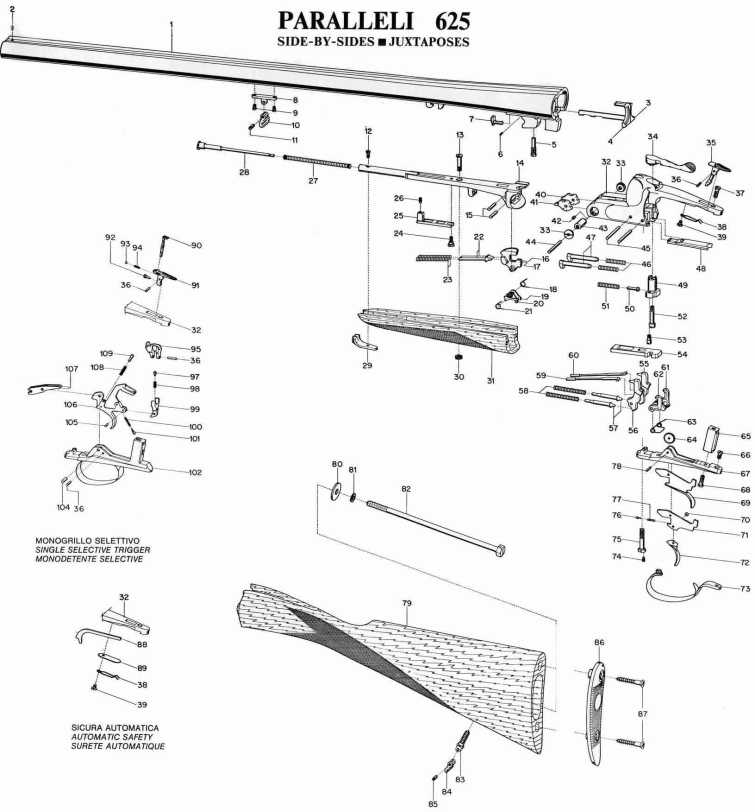

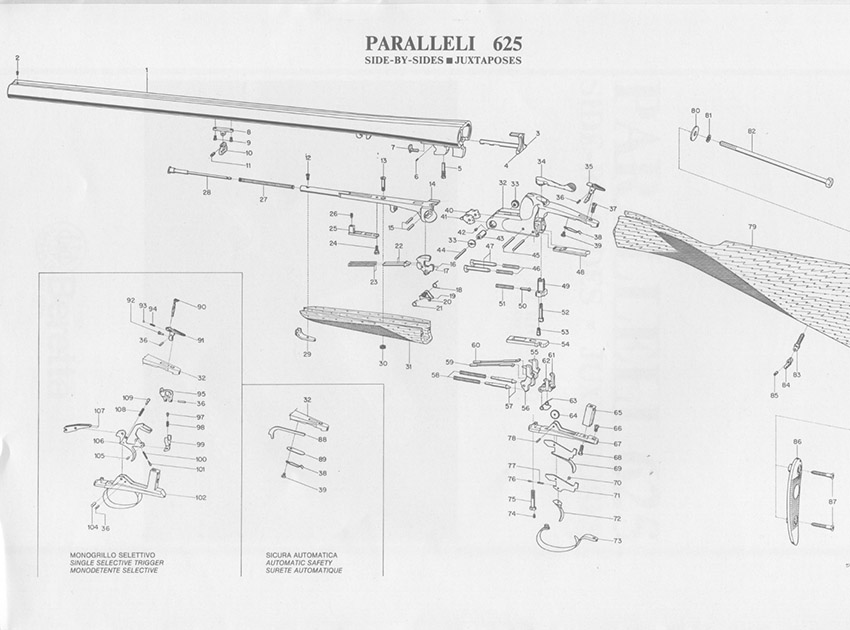

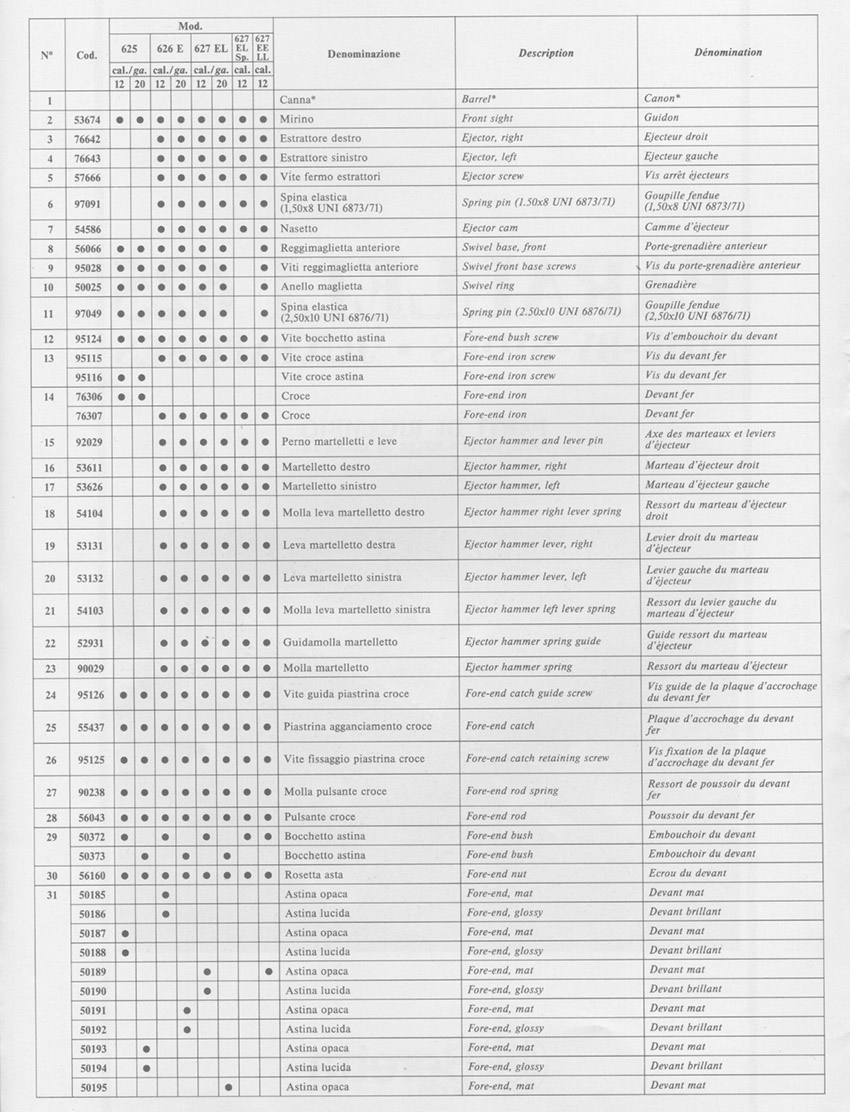

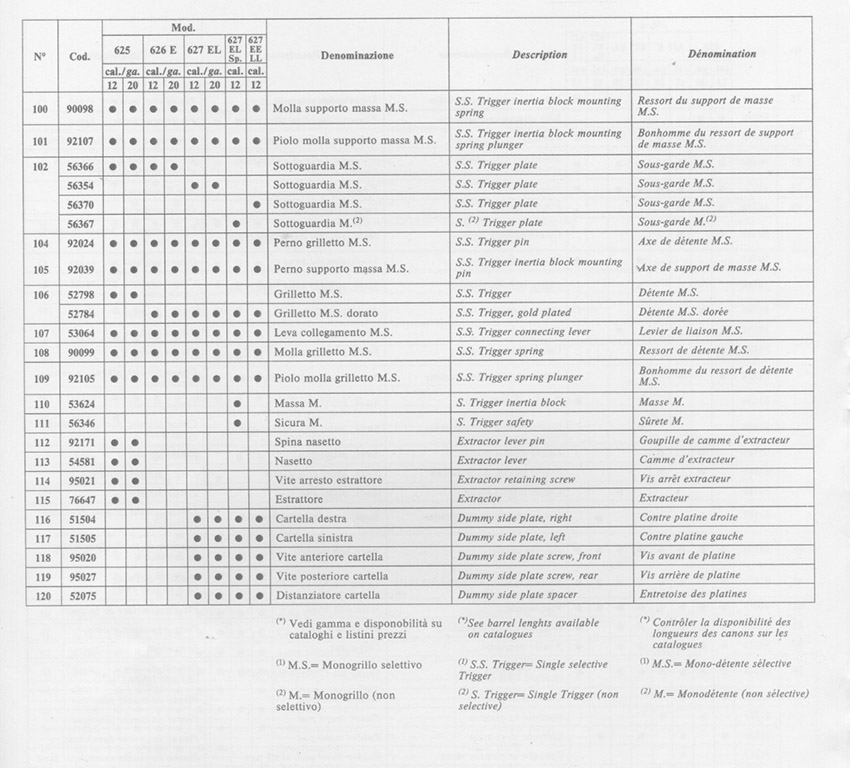

P. Beretta  Side by Side model 625 & 626

Product code Name Position
C62024 FRONT SWIVEL SIDE BY SIDE FOR BARREL (WITH SCREWS) 008
C95028 SWIVEL SPRING 009
C50025 SWIVEL S55 010
C97049 PIN 011
C95124 SCREW 012
C95116 SCREW 013
C95126 SCREW PLATE GUIDE 626 SIDE BY SIDE 486 024
C55437 PLATE 025
C95125 SCREW 026
C90238 SPRING 027
C56043 PUSH BUTTON 028
C50372 FOREND CONNECTOR 625 029
C56160 FOREND WASHER 12/20 GA S682 030
C56792 PLUG 033
C40474 TOOL 034
C56336 SAFETY 424 625 035
C92020 SAFETY PIN 2X10 SILVER PIGEON 036
C95014 STOCK BOLT PLATE SCREW 12/20 GA S682 037
C90014 SAFETY SPRING 425 625 SILVER PIGEON I GA 20 038
C95012 SAFETY SPRING SCREW 690 695 039
C52961 COCKING LEVER 040
C95026 SCREW 042
C54971 HINGE PIN 043
C92169 SEAR LEVER PIN 625 044
C92170 HAMMER PIN 045
C90024 SEAR LEVER RECOIL SPRING 625 046
C50039 OPERATING ROD 425 625 470 471 047
C56859 BLOCK 048
C55007 PIN 049
C90021 TOP LEVER SPRING 425 625 051
C95023 SCREW 052
C95029 SCREW 053
C56881 LOCKING BLOCK 425 625 054
C51243 HAMMER RIGHT RH DX 425 625 055
C51244 HAMMER LEFT SX 425 625 056
C56011 SPRING GUIDE 057
C90105 HAMMER SPRING 058
C53187 SEAR LEVER RIGHT RH DX 425 625 061
C53188 SEAR LEVER LEFT LH SX 425 625 062
C54190 SPRING 063
C52074 TRIGGER SPACER 425 625 064
C55958 CONNECTOR 065
C95025 SCREW TRIGGER GUARD 682 BLUED 066
C56356 TRIGGER PLATE 067
C95014 STOCK BOLT PLATE SCREW 12/20 GA S682 068
C52796 TRIGGER LEFT LH SX 425 426 069
C95010 SCREW 070
C55591 PLATE 071
C52585 TRIGGER 072
C77017 TRIGGER PLATE 073
C95045 SCREW 075
C92018 PIN 076
C90004 ARTICULATED TRIGGER SPRING FOR S55 625 077
C92025 TRIGGER PIN 078
C56136 WASHER 080
C97001 ELASTIC WASHER 682 081
C95015 STOCK SCREW S55 S56 S57 625 686 687 082
C62020 SWIVEL FOR WOOD STOCK SILVER PIGEON 083
C50025 SWIVEL S55 084
C97049 PIN 085
C51222 RECOIL PAD FIELD PLASTIC 12GA  BOMBED S55 086
C51229 RECOIL PAD RUBBER RED 20MM GA 12 AND GA 20 VENTILATED 086
C95002 RECOIL PAD SCREW STANDARD 087
C50054 SAFETY LEVER 425 088
C56138 AUTOMATIC SAFETY SPRING WASHER 690 089
C53244 SELECTOR LEVER 090
C92008 PIN 092
C97053 SPHERE 2.50 MM SV10 690 093
C90143 SELECTOR LEVER SPRING SINGLE SELECTIVE TRIGGER 094
C53627 MASS 095
C92106 PIN 097
C90097 INERTIA SPRING ST SINGLE TRIGGER 426 625 098
C56688 INERTIA SUPPORT SINGLE SELECTIVE TRIGGER - 426 - 626 099
C90098 SPRING 100
C92107 PIN 101
C92024 TRIGGER PIN 104
C92039 INERTIA BLOCK PIN SV10 690 105
C52798 TRIGGER 106
C53064 CONNECTING LEVER 107
C90099 SINGLE SELECTIVE TRIGGER SPRING 425 626 108
C92105 PIN 109
