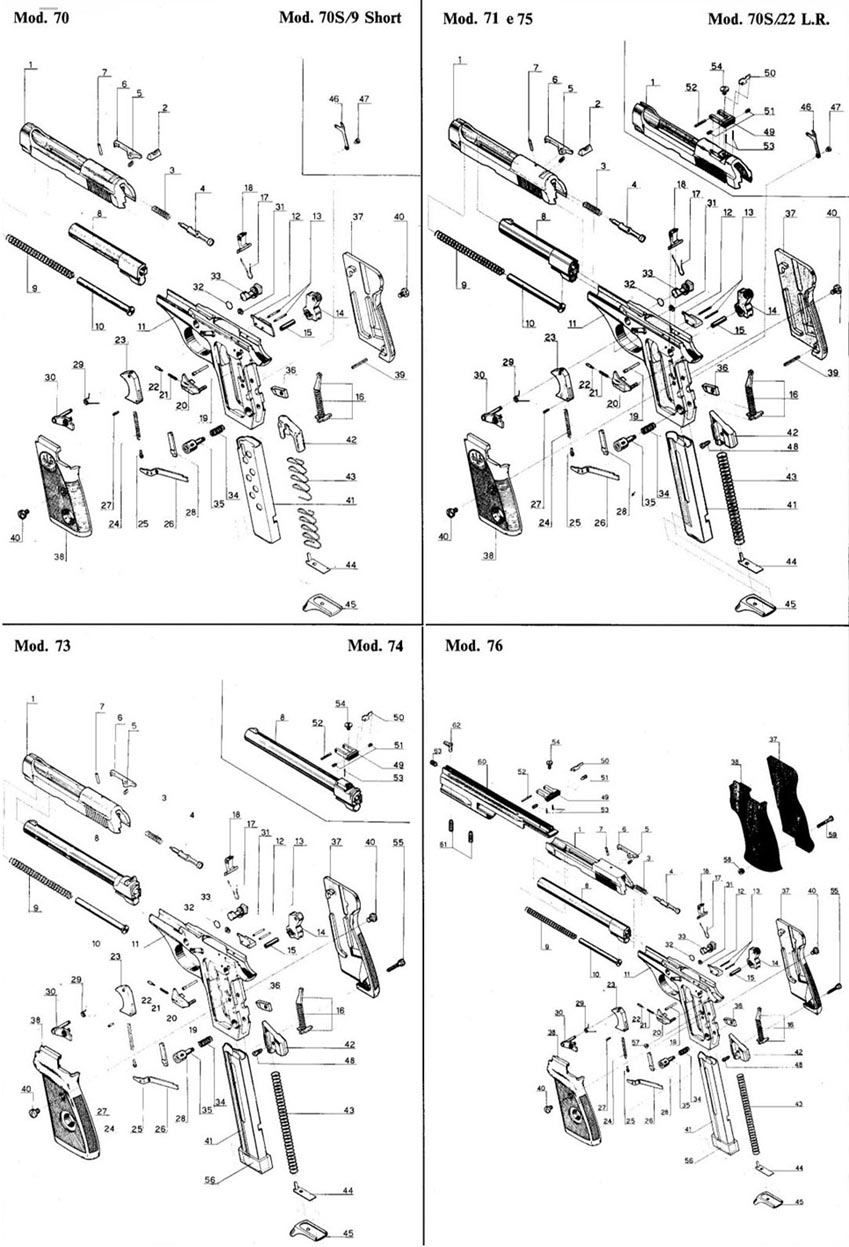

P. Beretta Pistols: model 70, model 71 & 75, model 73 & 74, Model 76

P. Beretta models: 70, 70S, 71, 75, 73, 74, 76

1. slide
2. firing pin
3. firing pin spring
4. extractor
5. extractor spring
6. extractor pin
7. rear sight
8. barrel
9. recoil spring
10. recoil spring guide
11. frame
12. ejector
13. ejector pins (2)
14. safety lever
15. safety lever spring with pin
16. hammer
17. hammer pin
18. hammer strut
19. hammer spring

20. hammer spring strut nut
21. sear
22. sear pin
23. sear spring
24. slide lock with spring
25. trigger
26. trigger bar spring
27. trigger bar spring plunger (2)
28. trigger bar
29. trigger bar pin
30. disconnector
31. slide catch
32. slide catch spring
33. trigger pin
34. slide catch screw
35. magazine release push button
36. magazine release spring
37. magazine catch
