P. Beretta Model AL391 URIKA

home parts

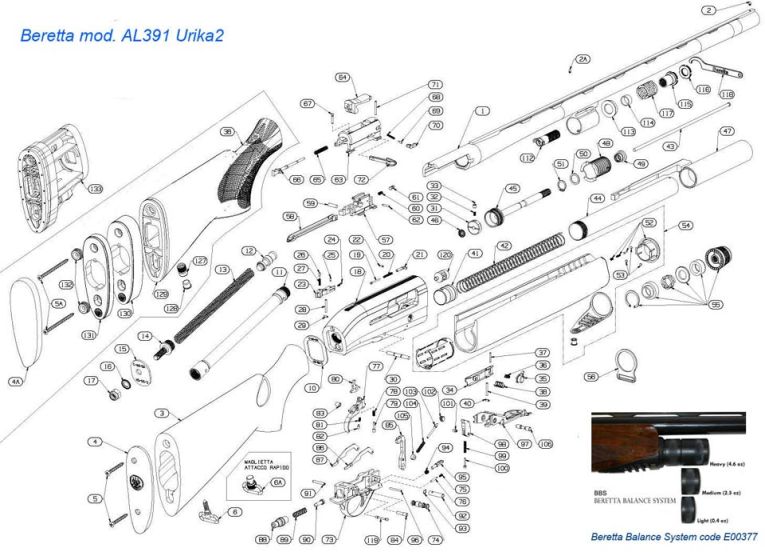

P. Beretta model AL 391 Urika

Reference Product Code Description
0 C58983  INSERT METAL F/E FLANGE AL391
0 C81127  PISTON,391 ASSEMBLY,12GA
2 C53659  SIGHT, FRONT BRASS 390/391
4 C53608  PAD RECOIL PLASTIC STRAIGHT
4 C53721  PAD RECOIL BLK RBBR 11/1618MM "
5 C95192  SCREW, BUTT PLATE 390/391/ASE/
10 C58978  SPACER,DROP,391/XTREMA,55/60
10 C58979  SPACER,DROP,391/XTREMA,50/65
11 C57245  TUBE,STOCK BOLT 390/391 12/20
12 C57884  GUIDE,RECOIL SPRING,AL390,12GA
13 C53791  SPRING, RECOIL 390/391 12/20GA
14 C58996  CAP,RECOIL SPRING,391/391XTREM
15 C55403  WASHER, PLATE, DROP 50/65 391
15 C55404  WASHER,PLATE,DRP 55/60 390/391
16 C97200  WASHER,STOCK BOLT 390/391/391
17 C97174  NUT,STK BOLT 390/391/391 XTRMA
19 C52928  GUIDE, EJECTOR SPRING 390/391
20 C90177  SPRING, EJECTOR 390/391 12/20
21 C54499  EJECTOR 303 390/391 12/20GA,
22 C97004  PIN,UNIV,SHORT,300 SERIES,680
23 C53672  LEVER,MAG CUTOFF 390/391/391
24 C53790  SPRING,MAG CUTOFF 390/391/391
25 C97038  PIN,MAG CUTOFF SPR 390/391/391
26 C92034  PLUNGER,CUT-OFF,390/391/391
27 C45567  SPRING,SAFETY 84/85F, 86/87
28 C92168  PIN,MAG CUT-OFF 390/391/391XTR
29 C97004  PIN,UNIV,SHORT,300 SERIES,680
30 C58984  PIN,TRIG PLATE RET PIN,391,12G
31 C59094  CONTAINER,MAG TUBE CAP PLUNGER
32 C90094  SPRING, SEAR (390/391) 12/20GA
33 C59095  PLUNGER,MAG TUBE CAP RET,391
34 C70287  LATCH,CART.BODY,303/390/391
35 C58594  BUTTON,CART LATCH 390/391/391
36 C90231  SPRING,CART LATCH 390/391/391
37 C92212  PIN,CART LTCH 390/391/391 XTRM
38 C90350  SPRING,CART LTCH BODY 390/391/
39 C92168  PIN,MAG CUT-OFF 390/391/391XTR
40 C97004  PIN,UNIV,SHORT,300 SERIES,680
41 C58995  FOLLOWER, MAGAZINE, 391, 12GA
43 C58974  PLUG,MAG TUBE,391,12/20GA,1RD
43 C58975  PLUG,MAG TUBE,391,12/20GA,2RD
44 C58976  TUBE,MAG,391,12GA,LIGHT,FIELD
44 C59087  TUBE,MAG,391,12GA,2RDS,LIGHT
44 C59096  TUBE,MAG,391,12GA,3RDS STEEL
44 C59311  TUBE,MAG,391,12GA,2RDS STEEL
45 C58977  CAP, MAG TUBE, 391, 12GA
46 C97192  WASHER,MAG REDUCE RETAIN, 391,
47 C70566  ROD, OPERATING, 391, 12GA
48 C81127  PISTON,391 ASSEMBLY,12GA
49 C58970  BUSHING, PISTON, 391, 12/20GA
50 C58967  WASHER, PISTON BUSHING, 391,
51 C58968  RING,PISTON BUSH SNAP,391,12GA
52 C81130  SLEEVE,F/E FLANGE,391,PLASTIC
53 C58992  MAGNET,F/E SLEEVE,391/391 XTRM
55 C81128  CAP, FOREND, 391, 12/20GA
56 C58924  SWIVEL,SLING,391,FRONT,12/20GA
57 C51506  SLIDE, BREECH BOLT 303/390/391
58 C50581  ROD,CONNECTING 303/390/391 12G
59 C92095  PIN, CONNECT ROD 303/390/391
60 C90085  SPRING, COCK HNDL PLUN 303/390
61 C56051  PLUNGER, COCK HANDLE 303/390
62 C97037  PIN,UNIV,LONG,300 SERIES/680,
63 C54707  BOLT, BREECH 303/390/391 GLOSS
64 C50694  BLOCK, LOCKING 303/390/391 12G
65 C90148  SPRING, FIRING PIN 303/390/391
66 C54731  PIN, FIRING 303/390/391 12GA
67 C56426  PIN,FIRING PIN RET 303/390/391
68 C90138  SPRING, EXTRACTOR 303/390/391
69 C92155  PLUNGER,EXTRACTOR 303/390/391
006A  C88113  SWIVEL ASSEMBLY XTREMA 2
70 C52238  EXTRACTOR, 303/390/391 12GA
71 C92154  PIN, EXTRACTOR 303/390/391
72 C58933  HANDLE,COCKING,303/390/391
73 C59215  PLATE, TRIGGER, 391, 12GA
73 C81149  PLATE, TRIGGER ASSY 391, 12GA
74 C56551  SAFETY,390(12GA ONLY)391 12/20
75 C90042  SPRING,TRIG BAR PLNGER,9000S
76 C58985  PLUNGER,SAFETY SPRING,391,12GA
77 C58931  TRIGGER, GOLD, 391, 12/20GA
78 C90093  SPRING, TRIGGER 303/390/391
79 C92099  PLUNGER, TRIG SPRG GUIDE 303/
80 C58972  SEAR,391,12/20 GA
81 C90094  SPRING, SEAR (390/391) 12/20GA
82 C92098  PLUNGER, SEAR 303/390/391 AND
83 C50757  BUSHING, TRIGGER 303/390/391
84 C92094  PIN,TRIGGER 303/390/391,12/20
85 C71020  HAMMER ASSY 303/390/391/ 12GA
86 C50737  BRACE, RIGHT 303/390/391
87 C50738  BRACE, LEFT 303/390/391
88 C56006  GUIDE, HAMMER SPRING 303/390/
89 C90030  SPRING, HAMMER 303/390/391
90 C55824  PLUNGER, HAMMER SPRING GUIDE
91 C97007  PIN, HAMR SP GUIDE 303/390/391
93 C50072  RING, HAMMER BUSH RET SPRG
94 C90235  SPRING, CAR CTCH PL 303/390/
95 C55631  PLUNGER, CARRIER CATCH 303/390
96 C92214  PIN, CARRIER CTCH PLNGER 303/
97 C5A355  CARRIER,391,12GA,FLAT
98 C52973  LEVER, CARRIER 300/390/391
99 C90083  SPRING,CARRIER LVR 303/390/391
100 C92091  PLUNGER, CARRIER LVR SPG GUIDE
101 C55221  PIN, CARRIER LEVER 303/390/391
102 C56158  JOINT, CARRIER SWIVEL 303/390/
103 C56023  GUIDE, CARRIER SPRING 303/390/
104 C90092  SPRING, CARRIER 303/390/391
105 C56159  JOINT, SPRG GUIDE SWIV 303/390
106 C92093  PIN, CARRIER 303/390/391 12GA
107 C59212  SIGHT, REAR, 391, 12GA
108 C95286  SCREW,REAR SIGHT SET,391,12GA
109 C59214  SIGHT,FRONT,391,SLUG BBL,12GA
111 C61358  WRENCH CHOKE TUBE,OPTIMA,12GA
112 C58925  VALVE SHAFT, 391, 12/20GA
113 C58930  VALVE, EXHAUST, 391, 12GA
114 C58926  RING, VALVE CENTERING, 391,
115 C58927  NUT, VALVE, 391, 12/20GA
116 C58928  NUT,VALVE COUNTER,391,12/20GA
117 C58929  SPRING,EXHAUST VALVE,391,
118 C59099  WRENCH,VALVE HOOK,391,12/20GA
119 C58971  PIN, TRIGGER RETAINING, 391,
120 C70564  ABSORBER, RECOIL, 391, 12GA
121 C90323  SPRING,FRONT SIGHT,391,12GA
122 C97117  PIN, SAFETY ALL 80 SERIES/8000
123 C95285  SCREW,FRONT SIGHT,391,12GA
124 C59305  HOOD, FRONT SIGHT, 391, 12GA
125 C61269  WRENCH,SPANNER ,391,2MM,REAR
126 C61268  WRENCH,SPANNER,391,.9MM,REAR
127 C5B209  SWIVEL NUTS XTREMA 2
128 C5B226  SWIVEL NUTS XTREMA 2
