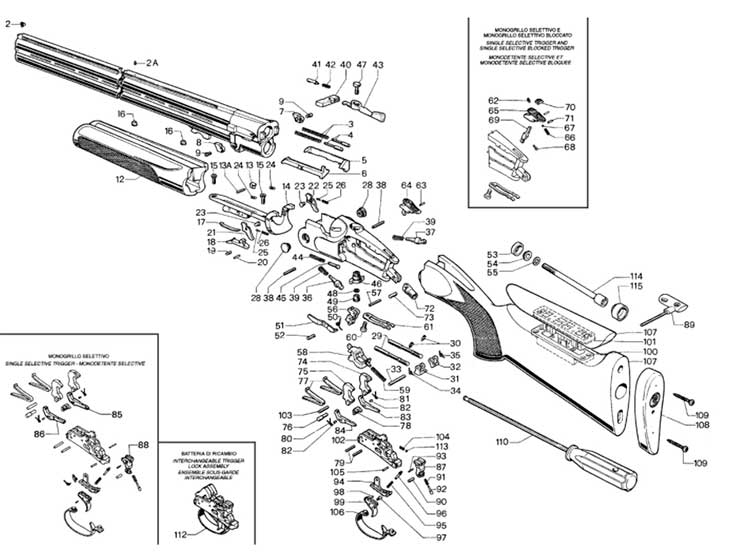

P. Beretta model DT10 Trident 12 GA

home 92X Performance

Product code Name Position
C55673 SIGHT FRONT BRADLEY USA WHITE 002
C55674 SIGHT FRONT RED SCREW 2.6 - LENGTH 8MM 002
C55675 SIGHT FRONT RED SCREW 2.6 - LENGTH 12MM 002
C54550 MID BID METAL 002A
C90421 EJECTOR SPRING 12 GA SERIE 680 SERIE 690 DT11 003
C92208 EJECTOR PIN GA 12 686 680 ASE DT11 DT10 682 695 SL3 004
E59180 EJECTOR RIGHT RH DX SEMIFINISHED - MILLED DT10 DT11 005
E59179 EJECTOR LEFT LH SX SEMIFINISHED - MILLED DT10 DT11 006
C55465 LOCKING SHOULDER RH RIGHT HAND 12 GA DT11/S682 007
C55475 LOCKING SHOULDER LH LEFT HAND 12 GA DT11/S682 008
C95053 LOCKING SHOULDER RETAINING SCREW 12 GA DT11/S682 009
C59192 FOREND IRON INSERT DT11 013
C59194 FOREND IRON INSERT 2.25 DT11 013
C59195 FOREND IRON INSERT 2.45 12 GA DT10 DT11 013
C97067 ELASTIC PIN 2X16 DT11 DT10 013A
C5B178 FORE-END IRON 014
C59201 FOREND IRON FRONT SCREW 015
C59240 FOREND WASHER DT11 016
C53777 SPRING - FOREND IRON CATCH SPRING ASE90 ASE GOLD DT10 DT11 017
C5B173 FORE-END IRON CATCH 018
C92219 FOREND IRON PIN DT11 DT10 ASE90 ASE GOLD 019
C97060 ELASTIC PIN 2X10 690 695 DT11 694 020
C59182 FORE-END IRON LEVER LEFT 021
C59181 FORE-END IRON LEVER RIGHT 022
C59199 FOREND LEVER PIN DT11 BLACK 023
C95180 FOREND IRON LEVER PIN DT11 DT10 ASE90 ASE GOLD 024
C92231 FOREND IRON LEVER PIN DT11 DT10 ASE90 ASE GOLD 025
C90282 FOREND IRON LEVER SPRING DT11 DT10 ASE90 ASE GOLD 026
C5A890 HINGE PIN 028
C50048 OPERATING ROD STANDARD – GA 12 – ASE 90 - ASE GOLD - DT10 - DT11 029
C95058 SCREW FOR OPERATING ROD ASE90 ASE GOLD DT10 DT11 030
C53114 COCKING LEVER LEFT SX ASE 90 DT10 DT11 031
C53113 COCKING LEVER RIGHT DX ASE 90 DT11 DT10 032
C92232 SEAR LEVER PIN ASE 90 033
C54199 SEAR LEVER SPRING LEFT LH SX ASE 90 ASE GOLD DT10 DT11 034
C54200 SEAR LEVER SPRING RIGHT RH DX ASE 90 ASE GOLD DT10 DT11 035
C57464 FIRING PIN LEFT LH SX DT10 DT11 036
C57258 FIRING PIN RIGHT RH DX DT10 DT11 037
C92233 PIN FOR FIRING PIN ASE 90 DT10 DT11 038
C90311 FIRING PIN SPRING DT10 DT11 ASE90 ASE GOLD 039
C5J960 LOCKING BLOCK (A) 8 DEGREES X = 4.2 DT11 - DT10 040
C5J961 LOCKING BLOCK (B) 8 DEGREES X = 4.3 DT11 - DT10 040
C5J962 LOCKING BLOCK (C) 8 DEGREES X = 4.4 DT11 - DT10 040
C5J963 LOCKING BLOCK (D) 8 DEGREES X = 4.5 DT11 - DT10 040
C55682 PIN 041
C90136 SPRING, LOCK BAR ASE90 ASE GOLD SO DT10 DT11 GA 12 042
C82985 TOP LEVER 043
C90133 TOP LEVER SPRING SO2 DT11 044
C92149 TOP LEVER SPRING PIN S02 ASE 90 ASE GOLD DT10 TRIDENT DT11 045
C55208 TOP LEVER PIN DT11 046
C95258 SCREW 047
C97103 WASHER ELASTIC 4 DIN  ASE 90 048
C52172 TOP LEVER NUT  ASE90 DT10 DT11 049
C59233 SPRING 050
C59205 BOLT LEVER DT11 051
C92250 PIN 052
C56146 CONCAVE WASHER SV10 690 053
C56147 CONVEX WASHER SV10 690 054
C97079 SPRING WASHER 6,405561 SV10 690 695 055
C59237 FIRING PIN CATCH LEVER DT11 056
C92251 PIN 057
C55083 TRIGGER PLATE BOLT DT11 058
C90352 TRIGGER GUARD LOCK SPRING DT11 059
C95059 SAFETY SPRING SCREW 690 695 060
C59234 SAFETY SPRING DT11 061
C92243 SAFETY PIN 063
C5A893 SAFETY 064
C5A894 SAFETY 065
C5A895 SAFETY 065
C54986 STOCK SCREW BASE  DT11 ASE 90 ASE GOLD DT10 TRIDENT 072
C92253 PIN DT11 073
C59775 HAMMER RIGHT RH DX DT11 074
C59774 HAMMER LEFT LH SX DT11 075
C54937 HAMMER PIN ASE90 ASE GOLD DT10 DT11 076
C59154 HAMMER SPRING 12 GA DT10 DT11 077
C58207 MOLDING 486 078
C92237 TRIGGER PIN 079
C53778 SEAR SPRING 0.65 SINISTRA LEFT SX ASE90 ASE GOLD DT10 TRIDENT 080
C53782 SEAR SPRING 0.6 12 GA ASE90 / ASE GOLD / DT10 TRIDENT 081
C92235 PIN 082
C59717 SEAR LEVER RIGHT RH DX DT11 083
C59772 SEAR LEVER LEFT LH SX DT11 084
C53367 MASS 087
C62410 ADJUSTABLE KEY FOR B-FAST STOCK AND MEMORY SYSTEM STOCK  089
C92241 PIN 090
C90300 INERTIA BLOCK SPRING DT11 ASE ASE GOLD GA 12 091
C92110 PIN 092
C97191 PIN 093
C59242 SUPPORT 094
C90284 TRIGGER SPRING 095
C56005 TRIGGER SPRING GUIDE ASE 90 - DT11 - SL3 096
C95287 SCREW ADJUSTABLE TRIGGER GOLD COLOR - DT11 GA 12 - ASE GA 12 097
C97148 SPHERE DT11 098
C83388 MEMORY SYSTEM SET FOR 682 AND DT10 100
C83389 MEMORY SYSTEM SET FOR 682 AND DT10 101
C5B183 TRIGGER PLATE 102
C92234 PIN 103
C90326 SPRING 104
C97037 ELASTIC PIN 2X12 ISO 690 695 105
C77006 TRIGGER GUARD 106
C95192 BUTT PLATE SCREW DIAMETER 4X40 109
C61280 STOCK WRENCH TOOL 110
C82979 DETACHABLE TRIGGER GROUP SINGLE SELECTIVE TRIGGER DT10L 112
C82980 DETACHALE TRIGGER GROUP SINGLE NON SELECTIVE TRIGGER 112
C97018 SAFETY SPHERE 1/8" DT11 113
C95225 STOCK BOLT SCREW DT11/DT10/ASE 114
C53949 BUSH STOCK KEY GUIDE 12 GA S682 115
